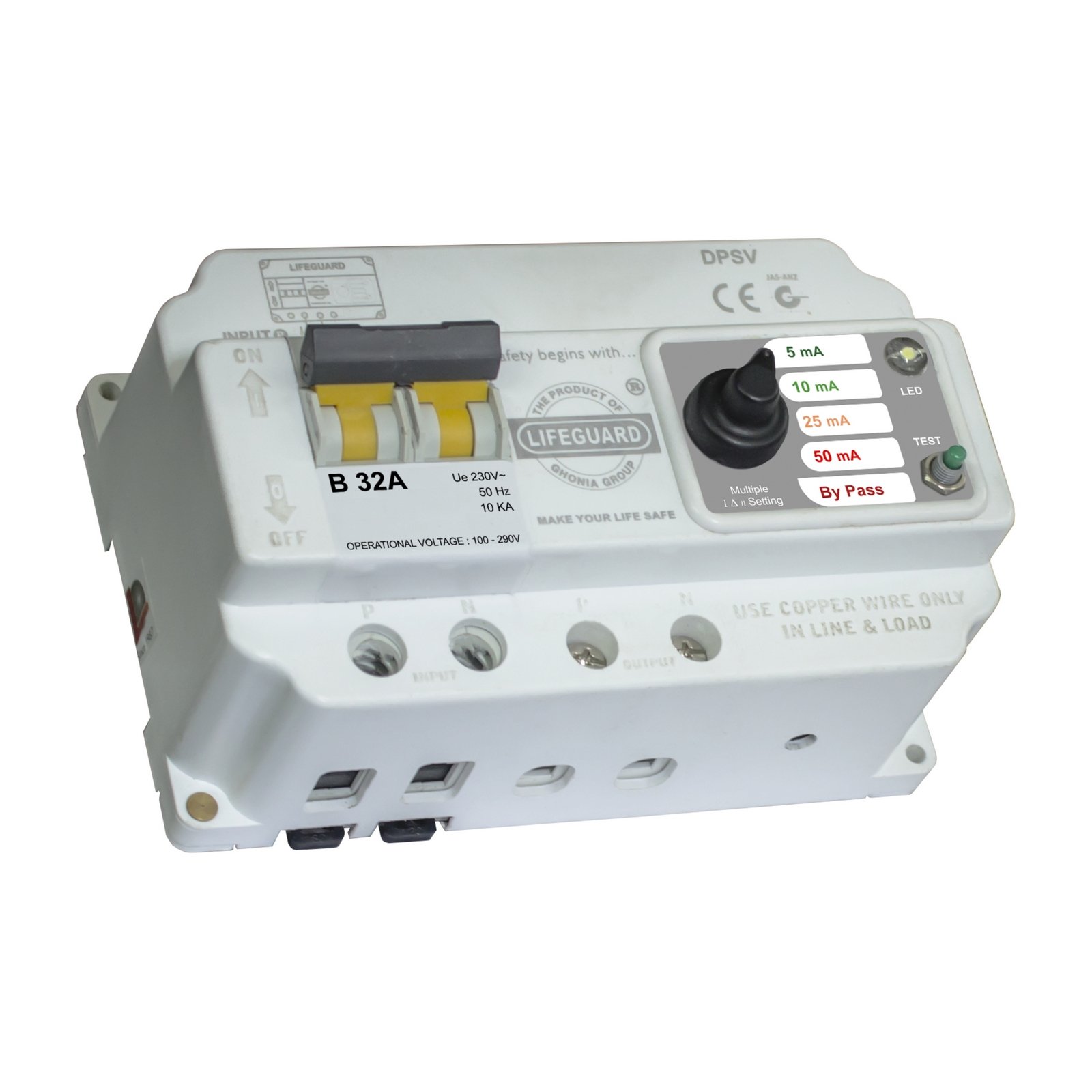

Lifeguard DPSV 32A Single Phase 2 Pole Advance Circuit Breaker | Over Voltage Protection & Adjustable Earth Leakage Protection | Tripping Siren with LED Light | PBT Body

Brand: LIFEGUARD

Features:

• LIFEGUARD DPSV RCBOs 32Amp., Single Phase, 2-Pole (1:Phase, 1:Neutral)
• Rated breaking capacity :10kA ( ISI MCB Designed by German Technology), 220V AC, 50 Hz, Rated Residual Operating Time : 0.03S, O/v Cut-Off: 285V +/-2% With Respect to Neutral
• Multiple IΔn (Rated Residual Operating Current) 5mA, 10mA, 25mA, 50mA, with Emergency ByPass Facility, Test button, Tripping LED & Intermittant Buzzer Indication with Auto Cut-Off Timer Upto 5 Min.
• Mount Type : DIN Rail & Screw Mounting, Enclosure Material : FR Grade PBT Material, 100A Copper Conductive Connector Block, FR Grade and Electricity Conductive Proof Cabinate
• Protection Against Electric Shock, Over Voltge, Short Circuit, Over Load, Two Phasing, Ground Fault, Power Wastage Detection, Neutral Return, And Other Silent Features (All Protection will not Work in By-pass Mode

Package Dimensions: 140x260x850

Details: LIFEGUARD DPSV MODEL PROVIDE PROTECTION AGAINST
-ELECTRIC SHOK PROTECTION(Human Safety),
-SHORT CIRCUIT UP TO 10KA(As Per Wire Size with Respect to MCB Rating,
-Un-wanted OVER VOLTAGE or HIGH VOLTAGE SPIKES PROTECTION,
-TWO PHASING PROTECTION TO INSTRUMENTS,
-GROUND FAULTS DETECTION,
-OVER LOAD PROTECTION,
-EARTH LEAKAGE TRIPPING
-POWER WASTAGE DETECTION
FEATURES OF PRODUCT
-Time Interval Siren with Timer up to 5 minutes
-Tripping LED Indication
-Multiple Leakage Sensitivity as 5mA, 10mA,25mA, 50mA
-Emergency By-Pass Facility (Safety Functions not working in bypass mode)
-Degree of Protection=IP 20,
– Built In 100A Copper Conductive Connector Block
-Corrosion Proof FR Grade PBT Material Cabinet
One can not think the world without electricity In today’s era. It is essential all the times. But like road accidents, electricity also is a big cause of accidents. Many a times we read in newspapers about lose of life due to electrical shock or terrible fire took place due to short circuit or damage to electrical appliances like Fridge, TV, washing machine, computer etc. due to huge power fluctuation and so on. But to prevent such incidents, we now have a solution – LIFEGUARD (RCCB + MCB) or RCBOs Woth Over Voltage Cut-Off Protections, available in different models as per required applications.
LIFEGUARD established in 1987 by Late Sh. Bhagvanjibhai D. Ghoniya (Gujarat Electricity Board, Ex. Laboratory Engineer) and he was invented india’s first electronics based ELCB + MCB and gave the open challenge to touch live electric wire if you installed lifeguard and we are pioneer of electronics shockguard with voltage protection and smart features.
